2吨/天 食用颗粒制冰机

序号NO.

参数名Parameters

数值Technical data

1

型号Model

NB2T-R2W

2

蒸发温度Evaporating temp.

-10℃

3

冷凝温度Condenser temp

+40℃

4

控制系统Control system

PLC micro-computer control

5

电源形式Voltage

220V/3Phase/60Hz

6

方冰密度cube ice weight density

500~550kg/m3

7

耗电量Power consumption

80KW~85KW/ton

8

尺寸Measurement

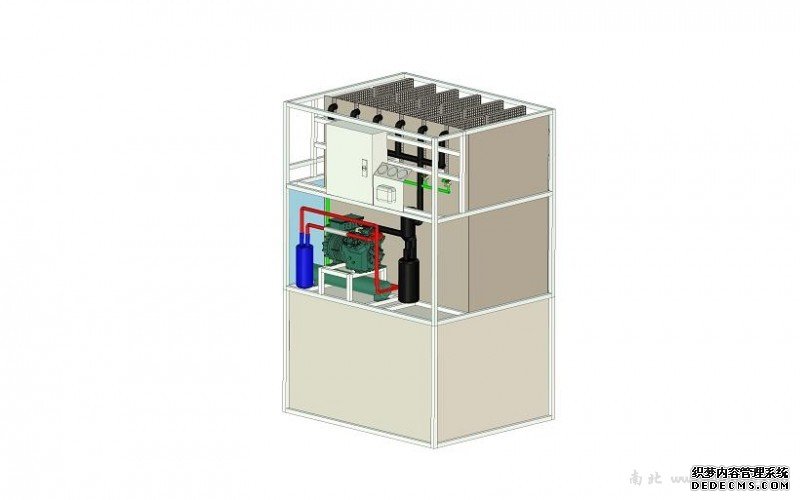

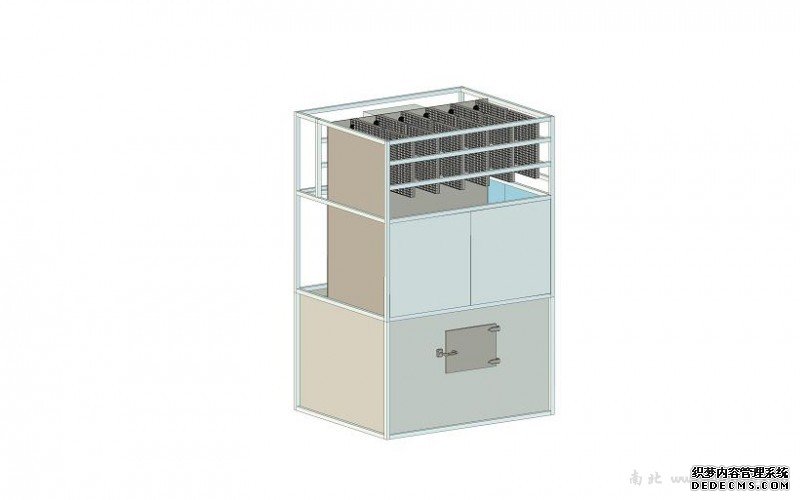

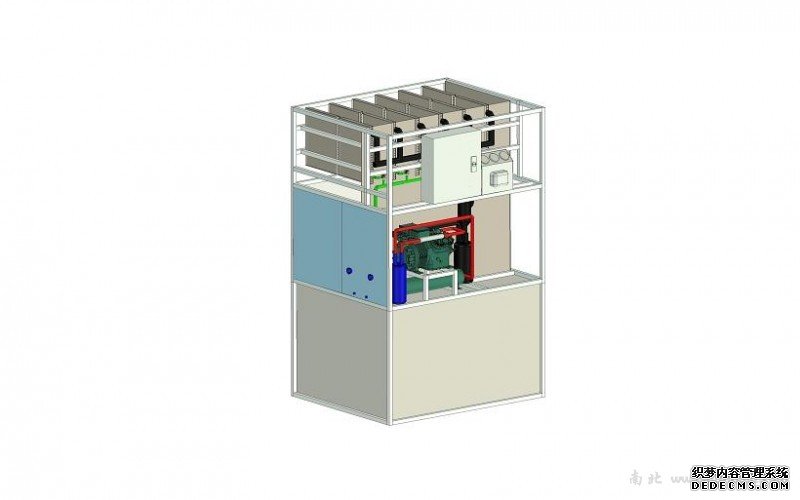

方冰机

Cube ice machine

Machine:1750mm x 1510mm x 2040mm

方冰

Cube ice

22mm x 22mm x 22mm 冰块尺寸

or 29mm x 29mm x 22mm

9

运行声噪Noise

55dB

10

制冷剂Refrigerant

R22

11

蒸发温度Evaporating temp.

-15℃

12

冷凝温度Condenser temp

+40℃

13

额定进水温度Input water temp.

28℃

14

额定环境温度Ambient temp.

40℃

15

压缩机

Compressor

类别Model

富士豪半封闭压

Brand name

富士豪

数量Amount

1

型号Type

Q7-33.1

制冷量Power

16.78KW

16

减速电机

0.75KW

17

冷却风扇总功率

Total Power of cooling fan

0.55KW

18

冷却水泵

2.2KW

19

冷冻水循环泵功率

Power of circulating water pump

0.75KW

20

蒸发器Evaporator

型号Type

cube type

数量Quantity

8 pieces
